Purpose built for demanding marine environments

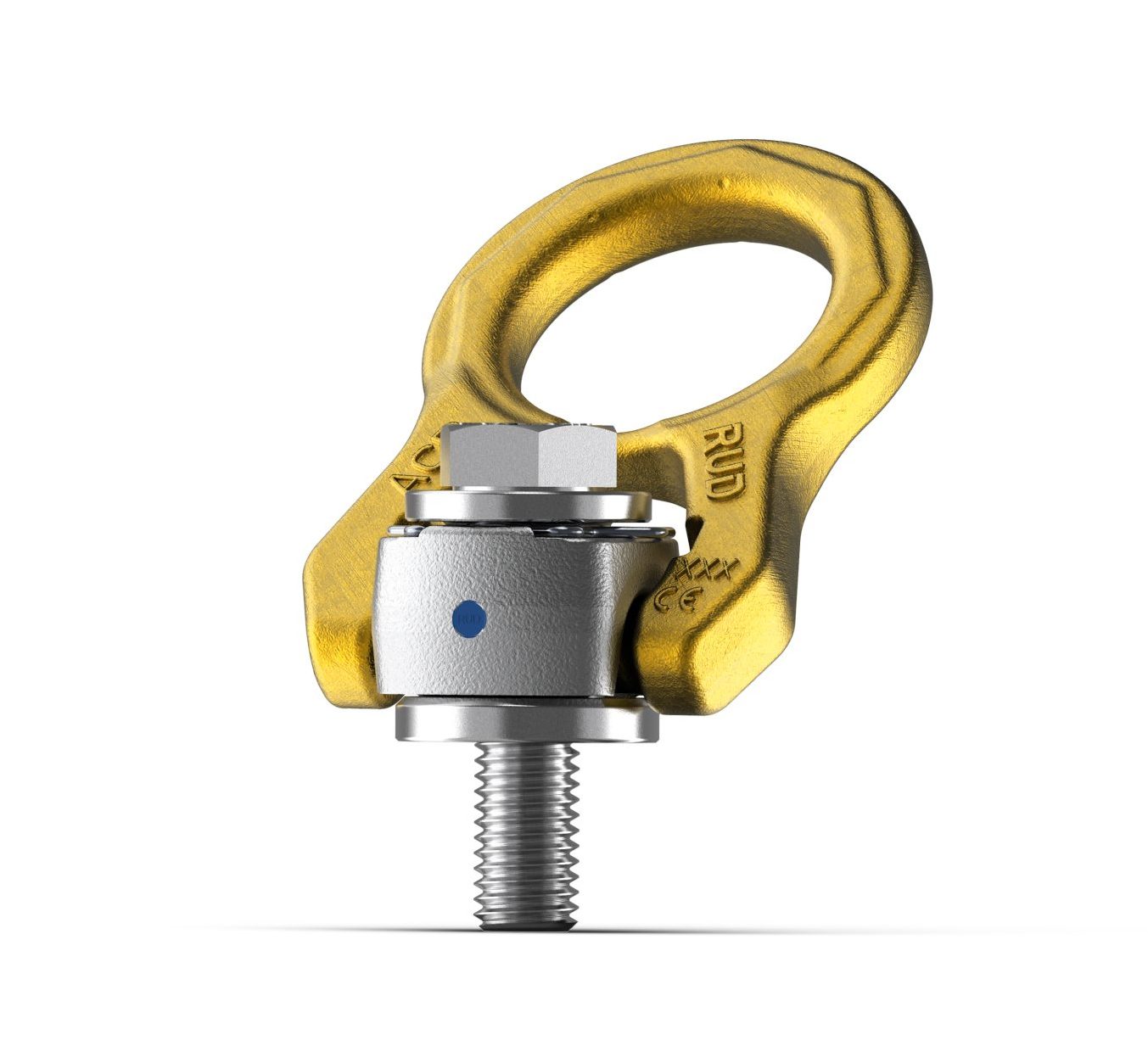

Purpose built for demanding marine environments, the ACP -TURNADO OCEANSTAR combines certified subsea suitability, corrosion resistance and automatic load alignment.
Featuring a Zinc flake coating
AVAILABLE IN
M8–M30
720 HOURS
The first boltable lifting point with DNV Type Approval for subsea lifting
Designed for controlled, secure subsea operation.rnrn
Why choose ACP-TURNADO OCEANSTAR?
Certified subsea performance with corrosion protection and automatic alignment for more controlled load handling.
Spring assisted lift bail aligns with the load direction, helping prevent damaging shock loads.
Zinc flake coating on all components, with at least 720 hours of salt-spray resistance.
Increased capacity compared with conventional lifting points of a similar shape and design.
Exchangeable bolt and RUD BLUE-ID RFID support maintenance, identification and inspection records.
BUY ONLINE
Available in seven metric sizes from M8 to M30, with working load limits from 0.5 to 8 tonnes.
VARIATIONS
Get all the technical details and benefits in our brochure
Your guide to safe and reliable subsea operations

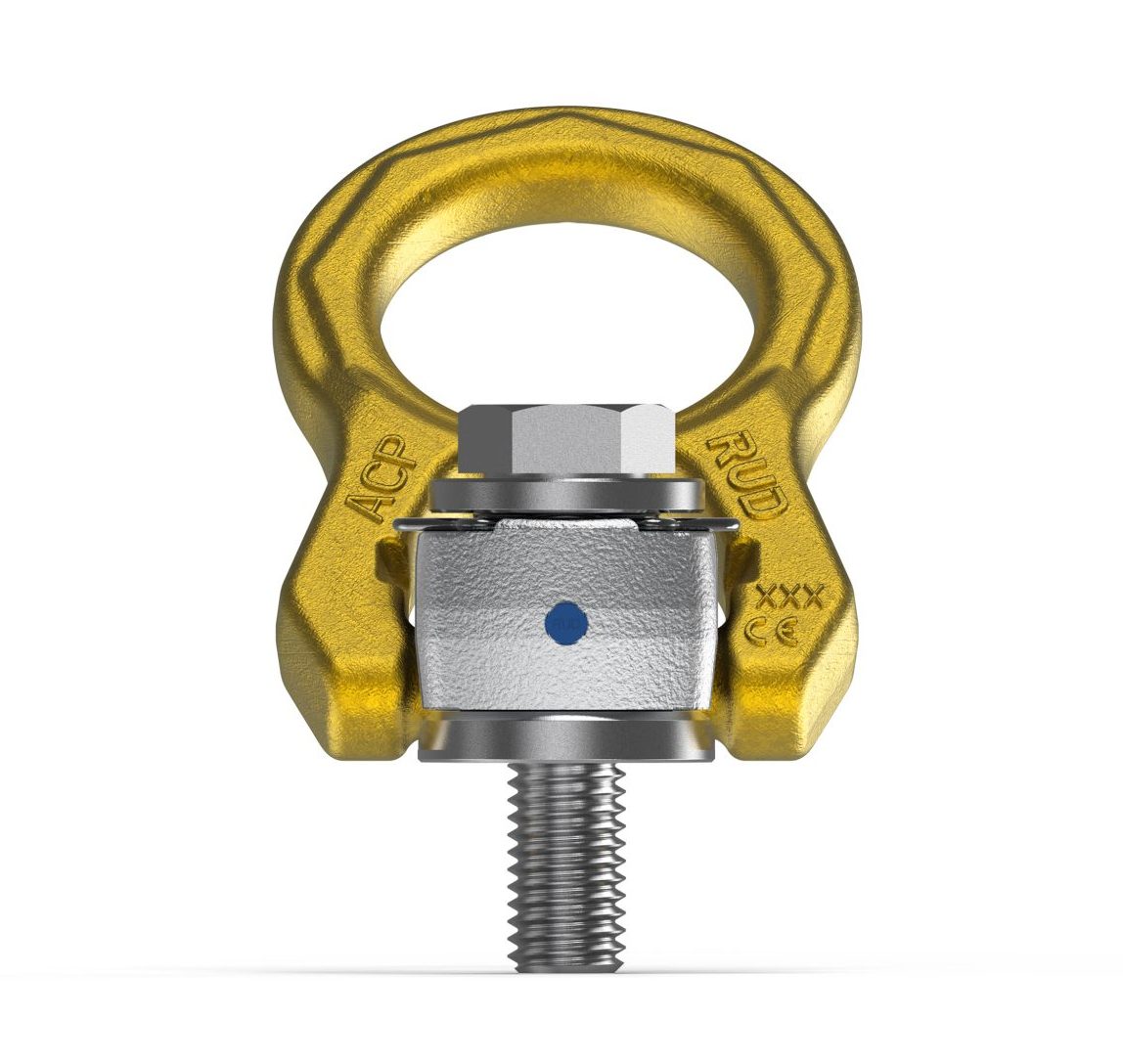

The RUD ACP-TURNADO OCEANSTAR is a lifting point specifically designed for maritime and subsea operations. It is intended for applications including offshore wind farms, drilling platforms, shipyards, subsea construction projects and associated supply operations. It is available in thread sizes M8 to M30, with working load limits (WLL) from 0.5 to 8 tonnes.
Yes. The ACP-TURNADO OCEANSTAR is the first lifting point certified by DNV for subsea applications, in accordance with DNV ST-0377 and DNV ST-0378. This certification makes it suitable for approved lifting operations in underwater and offshore environments.
The ACP-TURNADO OCEANSTAR features a special spring mechanism that automatically keeps the lift bail aligned with the direction of force, helping to prevent sudden shock loads. Its WLL is also up to 30% higher than conventional lifting points of a similar design. For protection against corrosion and material degradation, its components have a zinc flake coating providing at least 720 hours of salt spray resistance, while component hardness of ≤38 HRC helps protect against hydrogen embrittlement. The gold-coloured lift bail also improves underwater visibility.
