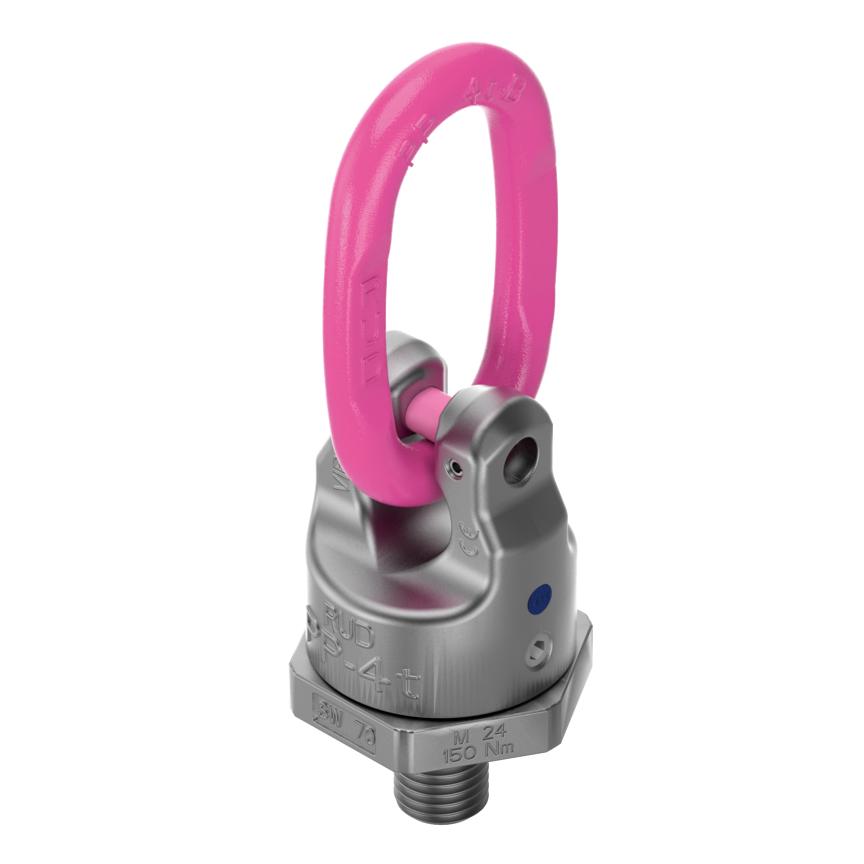

PP-B PowerPoint® ring connection, UNC thread

PP-B PowerPoint® ring connection, UNC thread

+44 (0) 12272 76611

PP-B PowerPoint® ring connection, UNC thread

Available now

Choose a variant

Qty.

View Specifications

Product Variants (7)

variation image

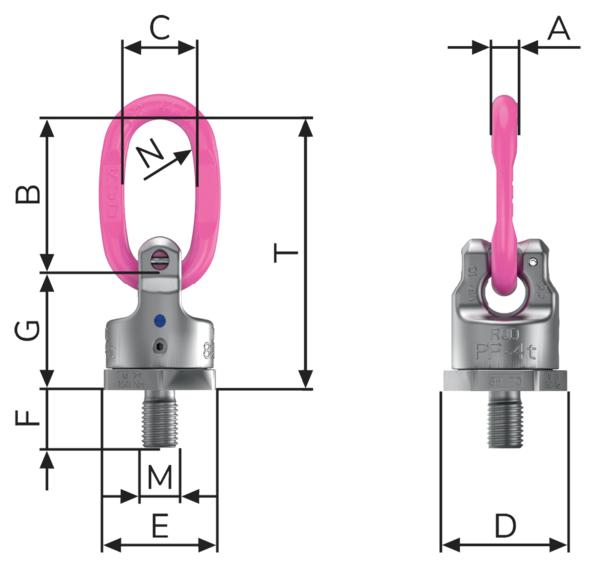

Attribute

Value

B

65 mm

C

35 mm

D

40 mm

E

36 mm

F

18 mm

G

41 mm

N

15 mm

T

106 mm

Durchmesser_Auflage

40 mm

Weight

0.35 kg

WLL

630 kg

WLL_4

630 kg

Downloads

PP-B-0_63t-1-2-dxf.zip

PP-B-0_63t-1-2-igs.zip

PP-B-0_63t-1-2-stp.zip

Learn more about our ACP range

Have a question about the PP-B PowerPoint® ring connection, UNC thread?

Our team can help with specs, load limits and compatibility.
