RS Eye bolt, UNF thread

RS Eye bolt, UNF thread

+44 (0) 12272 76611

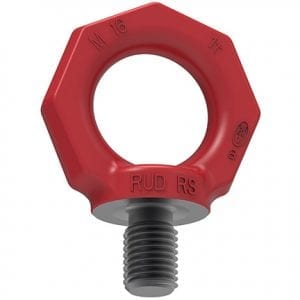

RS Eye bolt, UNF thread

Available now

ENQUIRE ABOUT THIS PRODUCT

Product Variants (6)

variation image

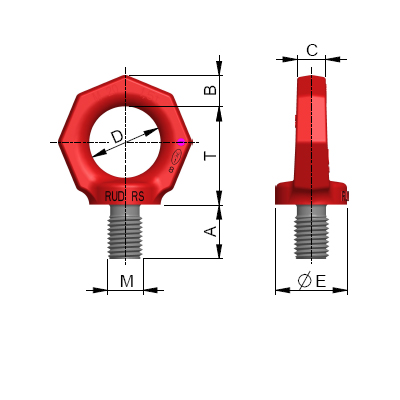

Attribute

Value

B

11 mm

C

10 mm

D

25 mm

E

25 mm

T

34 mm

Durchmesser_Auflage

25 mm

Weight

0.10 kg

WLL

250 kg

WLL_4

1000 kg

Downloads

rs_3_8z_24unf_dxf.zip

rs_3_8z_24unf_igs.zip

rs_3_8z_24unf_stp.zip

Learn more about our ACP range

Have a question about the RS Eye bolt, UNF thread?

Our team can help with specs, load limits and compatibility.
