VLBG Load ring, metric fine thread with variable length

VLBG Load ring, metric fine thread with variable length

+44 (0) 12272 76611

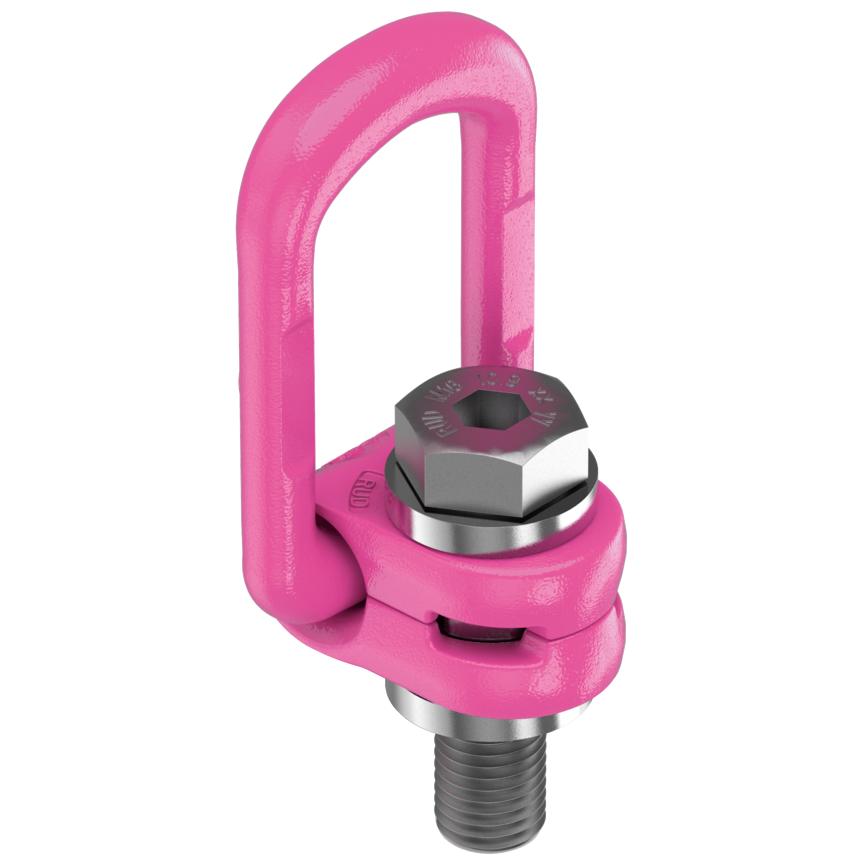

VLBG Load ring, metric fine thread with variable length

Available now

Choose a variant

Qty.

View Specifications

Product Variants (6)

variation image

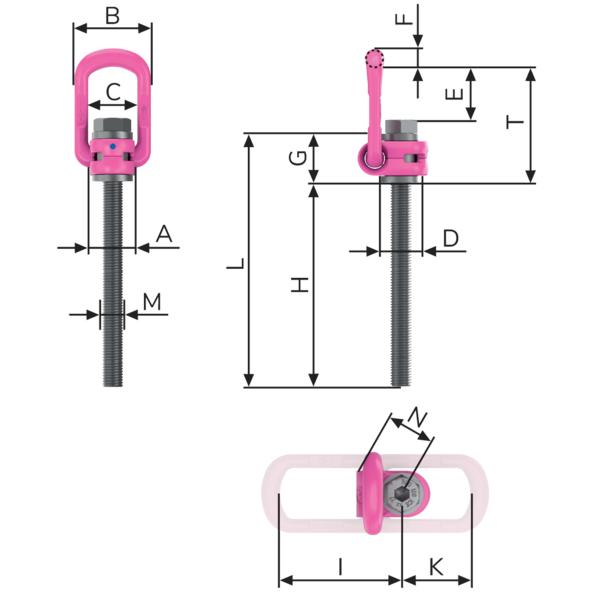

Attribute

Value

B

54 mm

C

34 mm

D

26 mm

E

38 mm

F

10 mm

G

29 mm

Size H Vario

12-31

I

75 mm

K

45 mm

Size L Vario

41-60

M

M12x1,5

N

32 mm

T

75 mm

Diameter

26 mm

WLL

1000 kg

Downloads

VLBG-1t-M12x1_5-dxf.zip

VLBG-1t-M12x1_5-igs.zip

VLBG-1t-M12x1_5-stp.zip
