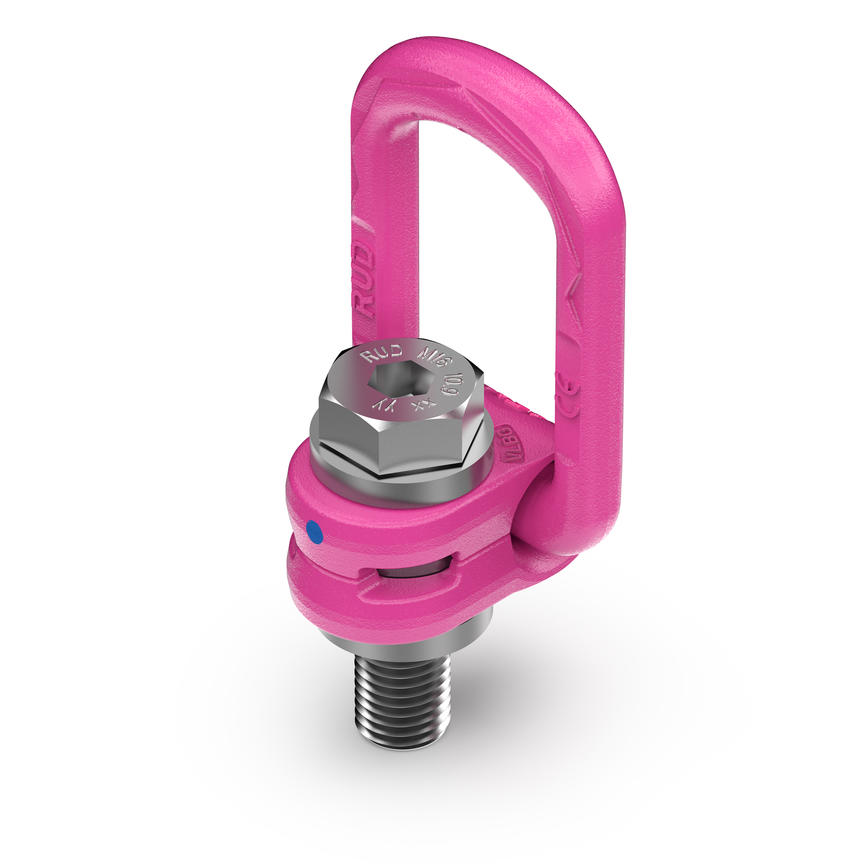

VLBG Load ring, metric thread with 10.9-bolt

VLBG Load ring, metric thread with 10.9-bolt

+44 (0) 12272 76611

VLBG Load ring, metric thread with 10.9-bolt

Available now

Choose a variant

Qty.

View Specifications

Product Variants (6)

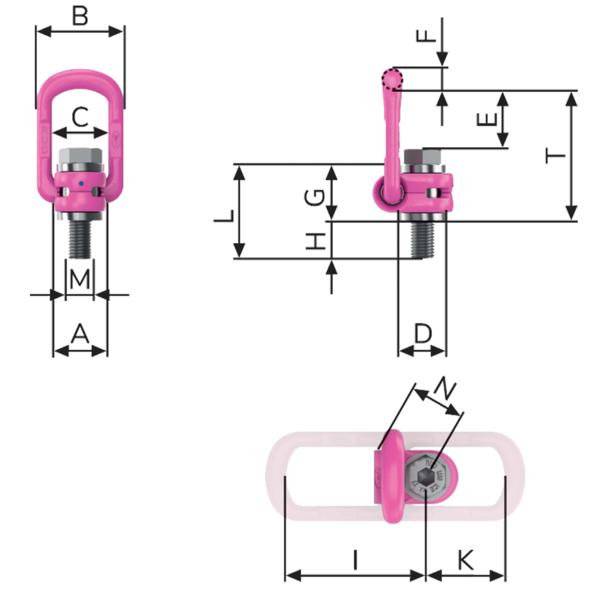

Attribute

Value

54 mm

34 mm

24 mm

40 mm

10 mm

29 mm

11 mm

75 mm

45 mm

40 mm

32 mm

75 mm

Diameter

24 mm

Weight

0.29 kg

WLL

300 kg

Downloads

Attribute

Value

54 mm

34 mm

24 mm

39 mm

10 mm

29 mm

16 mm

75 mm

45 mm

M10

32 mm

75 mm

Diameter

24 mm

Weight

0.31 kg

WLL

630 kg

Downloads

VLBG-M10_0_63t_igs.zip

276.16 KB

VLBG-M10_0_63t_stp.zip

234.05 KB

Attribute

Value

52 mm

34 mm

26 mm

38 mm

10 mm

29 mm

21 mm

75 mm

45 mm

50 mm

M12

32 mm

75 mm

Diameter

26 mm

Weight

0.34 kg

WLL

1000 kg

Attribute

Value

56 mm

36 mm

30 mm

39 mm

13.5 mm

36 mm

24 mm

86 mm

47 mm

60 mm

M16

38 mm

85 mm

Diameter

30 mm

Weight

0.55 kg

WLL

1500 kg

Downloads

VLBG-M16_1_5t_igs.zip

571.01 KB

VLBG-M16_1_5t_stp.zip

522.63 KB

Attribute

Value

82 mm

54 mm

45 mm

55 mm

16.5 mm

43 mm

32 mm

113 mm

64 mm

75 mm

M20

48 mm

110 mm

Diameter

45 mm

Weight

1.30 kg

WLL

2500 kg

Downloads

VLBG-M20_2_5t_igs.zip

567.67 KB

VLBG-M20_2_5t_stp.zip

507.45 KB

Attribute

Value

82 mm

54 mm

45 mm

67 mm

18 mm

43 mm

37 mm

130 mm

78 mm

80 mm

M24

48 mm

125 mm

Diameter

45 mm

Weight

1.43 kg

WLL

4000 kg

Downloads
