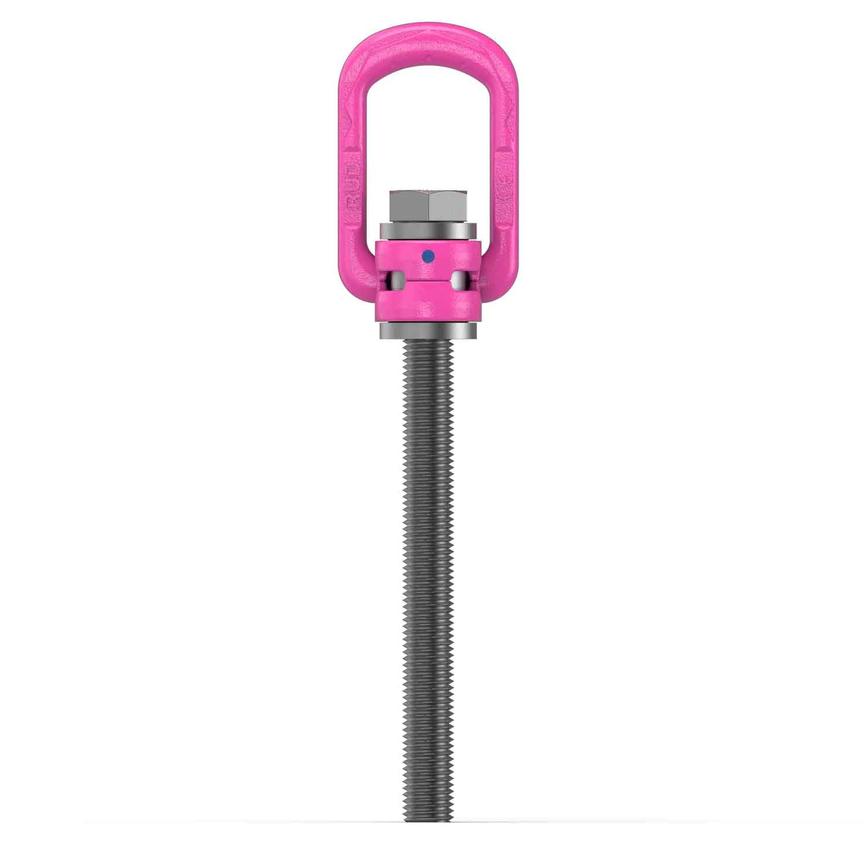

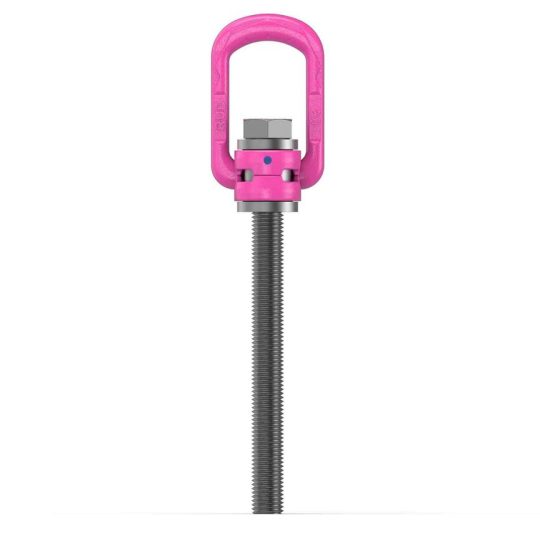

VLBG-Z Load ring, UNC thread with variable length

Available now

Choose a variant

Qty.

View Specifications

Product Variants (9)

variation image

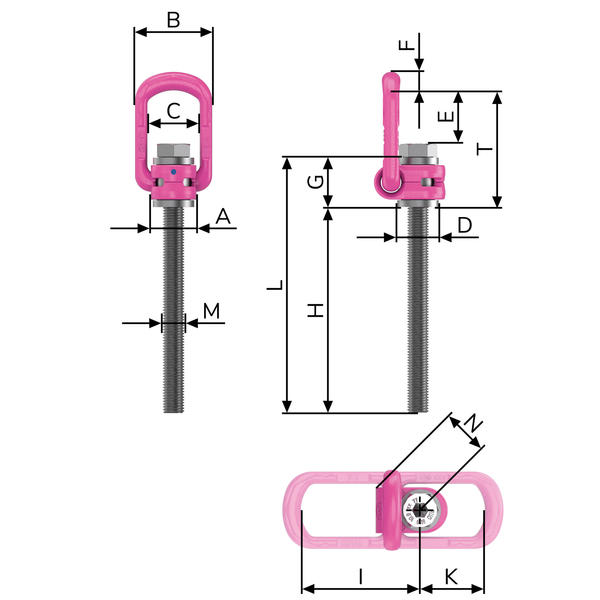

Attribute

Value

B

54 mm

C

34 mm

D

24 mm

E

39 mm

F

10 mm

G

29 mm

Size H Vario

10-98

I

75 mm

K

45 mm

Size L Vario

39-127

M

3/8"-16UNC

N

32 mm

T

75 mm

Diameter

24 mm

WLL

630 kg

Downloads

VLBG-Z-0_63t_3-8_MAX_8600440_dxf.zip

VLBG-Z-0_63t_3-8_MAX_8600440_igs.zip

VLBG-Z-0_63t_3-8_MAX_8600440_stp.zip
