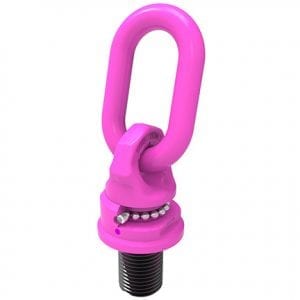

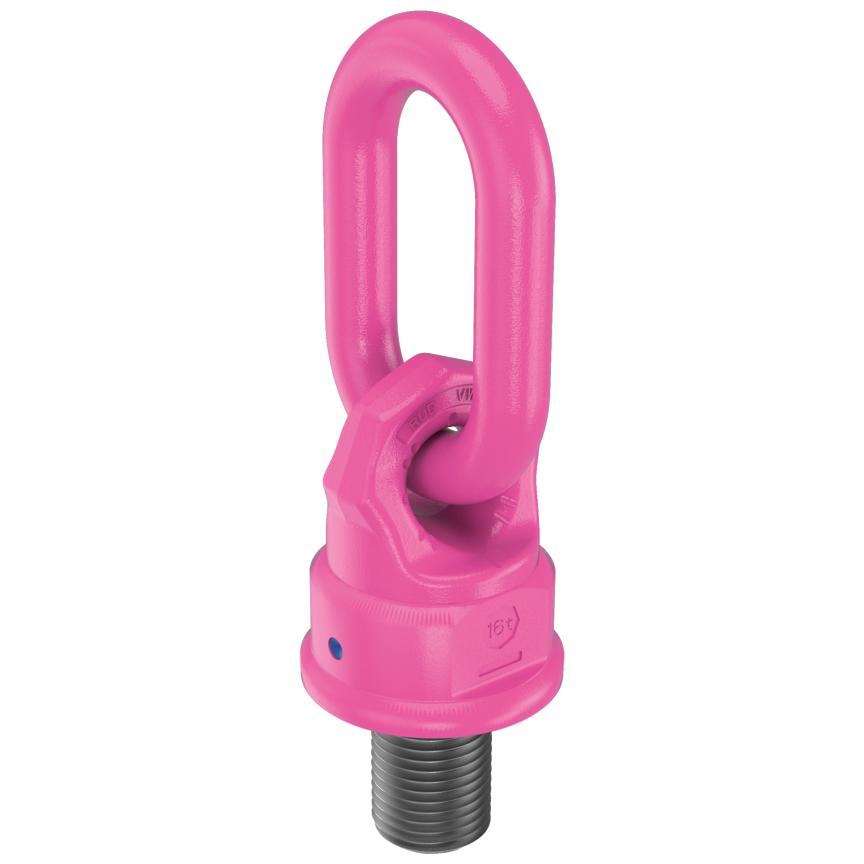

VWBG Load ring, metric thread

VWBG Load ring, metric thread

Available now

View Specifications

Product Variants (13)

variation image

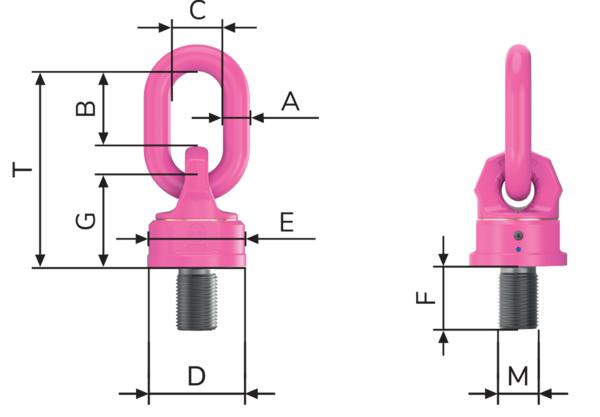

Attribute
Value
A
23 mm
B
86 mm
C
50 mm
D
90 mm
E
80 mm
F
50 mm
G
94 mm
T
208 mm
Durchmesser_Auflage
90 mm
Weight
4.69 kg
WLL
6000 kg
WLL_4
15000 kg

Downloads

VWBG-6t-M33-dxf.zip
17.61 KB
VWBG-6t-M33-igs.zip
210.10 KB
VWBG-6t-M33-stp.zip
193.81 KB

Learn more about our ACP range

Have a question about the VWBG Load ring, metric thread?

Our team can help with specs, load limits and compatibility.
