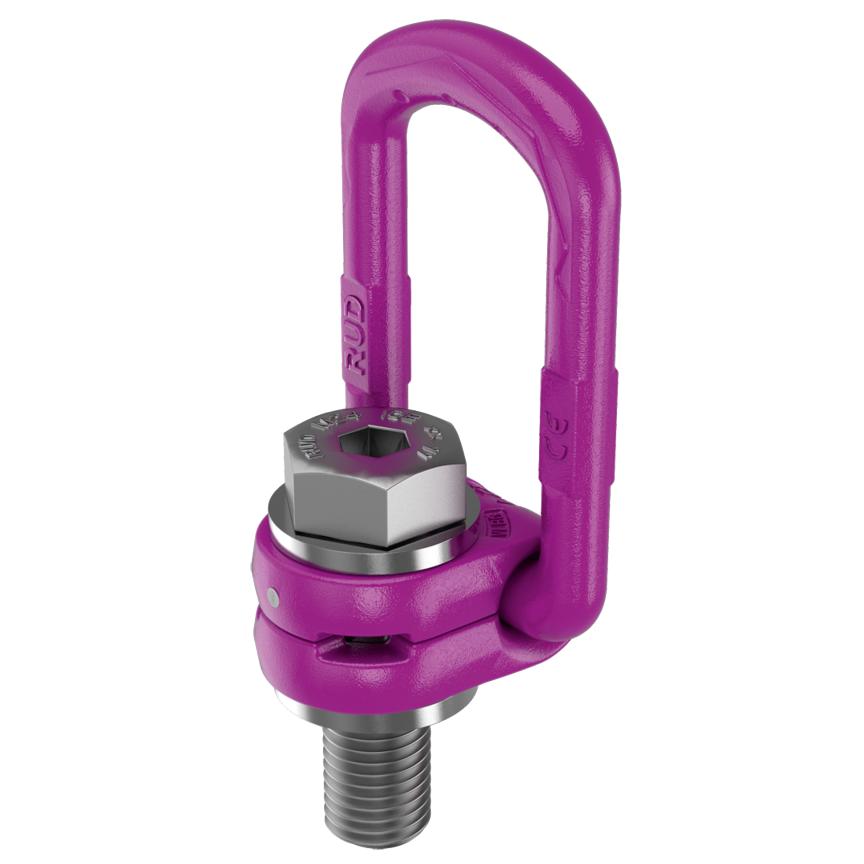

L-VLBG-PLUS Lashing ring metric thread

L-VLBG-PLUS Lashing ring metric thread

+44 (0) 12272 76611

L-VLBG-PLUS Lashing ring metric thread

Available now

Choose a variant

Qty.

View Specifications

Product Variants (2)

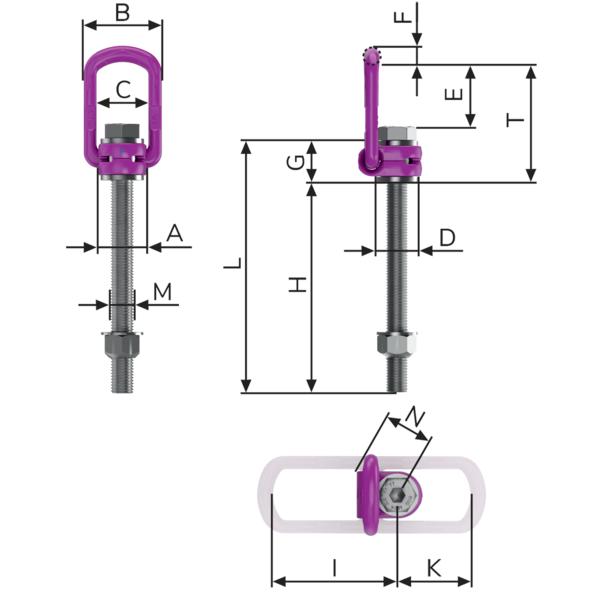

variation image

Attribute

Value

B

122 mm

C

82 mm

D

70 mm

E

97 mm

F

26.5 mm

G

77 mm

H

63 mm

I

205 mm

K

110 mm

L

140 mm

N

87 mm

T

197 mm

Weight

6.0 kg

Lashing Capacity

16000 daN

Downloads

L-VLBG-16000daN_dxf.zip

L-VLBG-16000daN_igs.zip

L-VLBG-16000daN_stp.zip

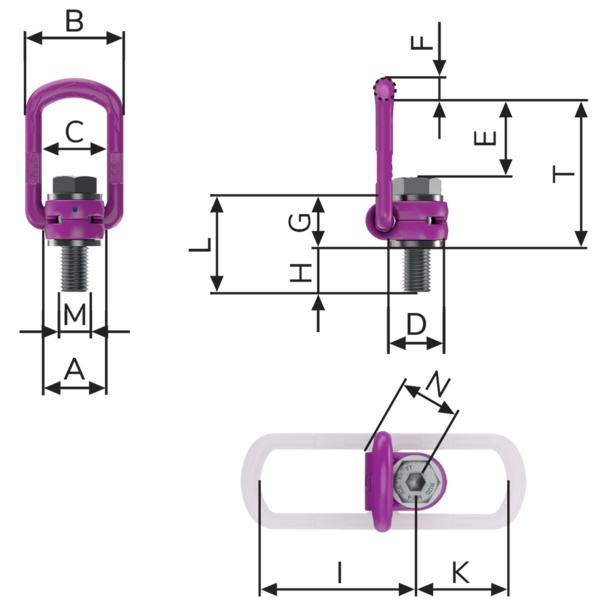

variation image

Attribute

Value

B

122 mm

C

82 mm

D

70 mm

E

97 mm

F

26.5 mm

G

77 mm

I

205 mm

K

110 mm

N

87 mm

T

197 mm

Lashing Capacity

16000 daN
