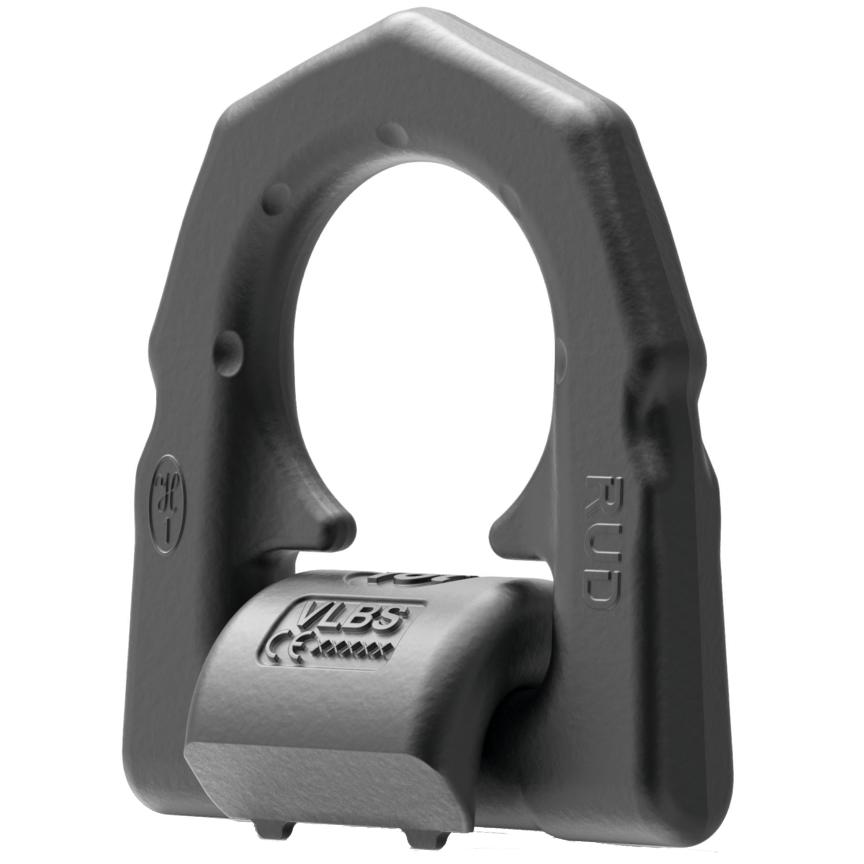

VLBS-U-LT – Load ring for welding, especially for low temperature

VLBS-U-LT - Load ring for welding, especially for low temperature

+44 (0) 12272 76611

VLBS-U-LT - Load ring for welding, especially for low temperature

Available now

ENQUIRE ABOUT THIS PRODUCT

Product Variants (4)

variation image

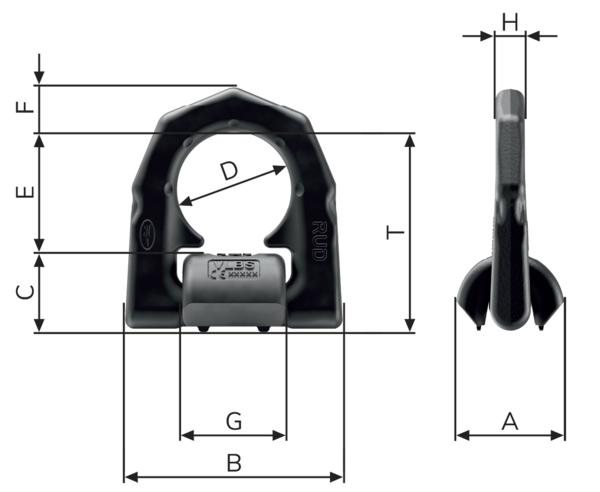

Attribute

Value

B

77 mm

C

28 mm

D

45 mm

E

47 mm

F

16 mm

G

40 mm

H

16 mm

T

75 mm

Weight

0.53 kg

WLL

2500 kg

WLL_4

2500 kg

Downloads

VLBS-U-LT-2_5t-dxf.zip

VLBS-U-LT-2_5t-igs.zip

VLBS-U-LT-2_5t-stp.zip

Learn more about our ACP range

Have a question about the VLBS-U-LT – Load ring for welding, especially for low temperature?

Our team can help with specs, load limits and compatibility.
