B-ABA Liftingpoint

B-ABA Liftingpoint

+44 (0) 12272 76611

B-ABA Liftingpoint

Available now

Choose a variant

Qty.

View Specifications

Product Variants (6)

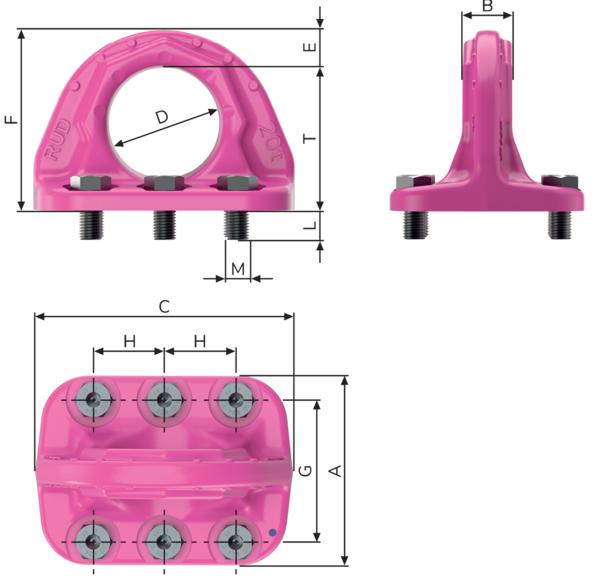

variation image

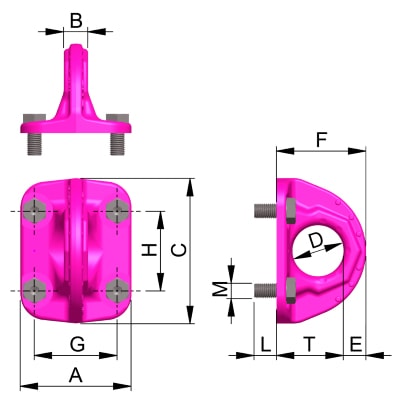

Attribute

Value

B

16 mm

C

100 mm

D

35 mm

E

16 mm

F

62 mm

G

55 mm

H

55 mm

L

13 mm

T

47 mm

Weight

0.88 kg

WLL

1600 kg

WLL_4

1600 kg

Downloads

B-ABA-1_6t-M10-7906266-dxf.zip

B-ABA-1_6t-M10-7906266-igs.zip

B-ABA-1_6t-M10-7906266-stp.zip

Learn more about our ACP range

Have a question about the B-ABA Liftingpoint?

Our team can help with specs, load limits and compatibility.
